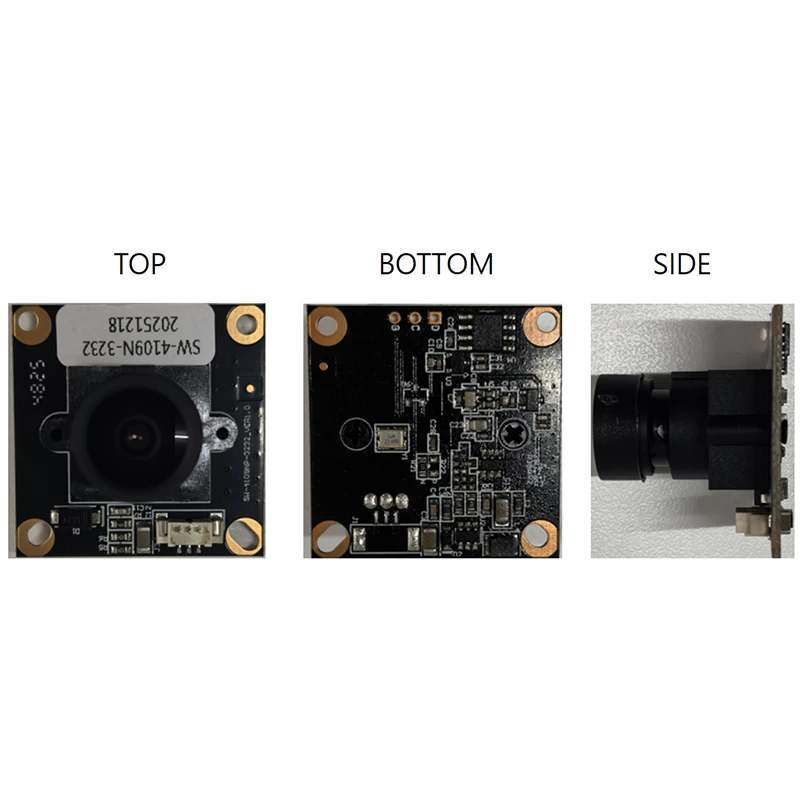

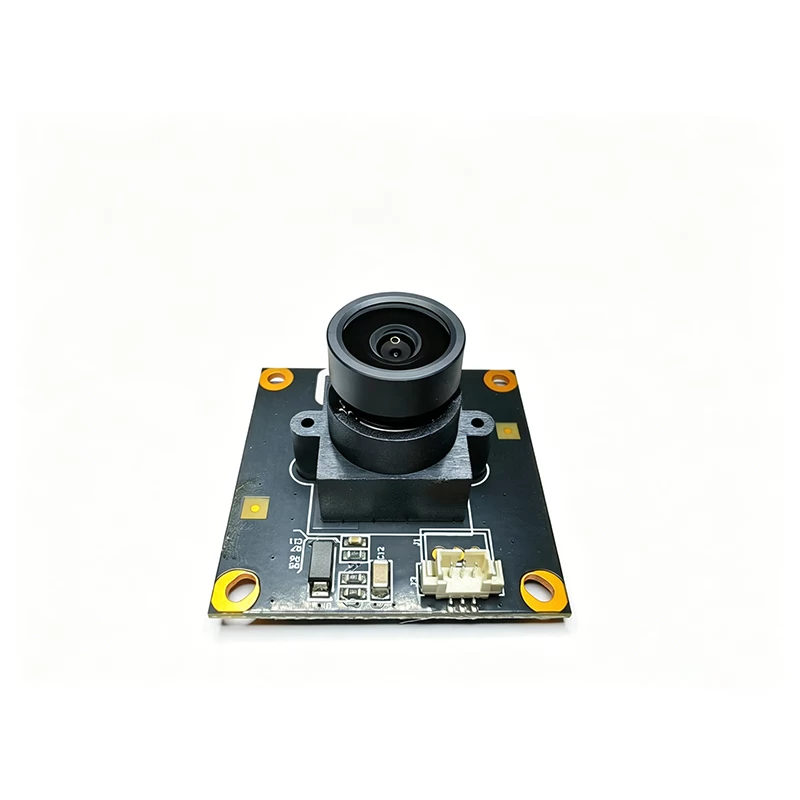

4109 38×38 / 32×32 Camera Module
Brief Introduction:
720P AHD analog HD camera module featuring a 1/4" 1.0MP CMOS image sensor with 1280 × 720 resolution and AHD composite video output. Equipped with a 3.1 mm F2.2 large-aperture lens, available in 38 × 38 mm and 32 × 32 mm PCB sizes. Supports DC12V power supply with automatic exposure and automatic white balance.
Advantages & Features:
- 1/4" 1.0MP PV4109K CMOS sensor with AHD NTSC/PAL video output.
- High sensitivity for improved image quality in low-light conditions.
- Integrated low-pass filter for cleaner image reproduction.
- Advanced color interpolation for accurate color rendering.
- Defective pixel correction for stable and reliable imaging.
- Compact PCB design for easy integration into embedded devices.
Applications:
- Vehicle Rear-View Camera Systems
- Industrial Vision & Equipment Inspection
- Vending Machines, EV Chargers & ATM Cameras
- Security Surveillance Systems
- Access Control Devices
- Inspection Instruments
- Smart Embedded Vision Terminals
Specifications
| Item | Specification |
|---|---|
| Image Sensor | 1/4" 1.0MP CMOS Image Sensor, 1288(H) × 728(V) Active Pixels |
| TV System | AHD NTSC / PAL |
| Effective Pixels | 1280(H) × 720(V) |
| Video Output | 1Vp-p, 75Ω Composite |
| Exposure | Auto |
| S/N Ratio | 43.3 dB |
| Dynamic Range | 66.9 dB |
| White Balance | Auto |
| Sensitivity | 22.5K e-/Lux·sec |
| Lens | 3.1 mm / F2.2 |
| Operating Temperature | -10°C to +50°C |
| Power Supply | DC12V (±10%), <1.8W |
| PCB Dimensions | 38 × 38 mm / 32 × 32 mm |
| PCB Thickness | 1.2 mm |
