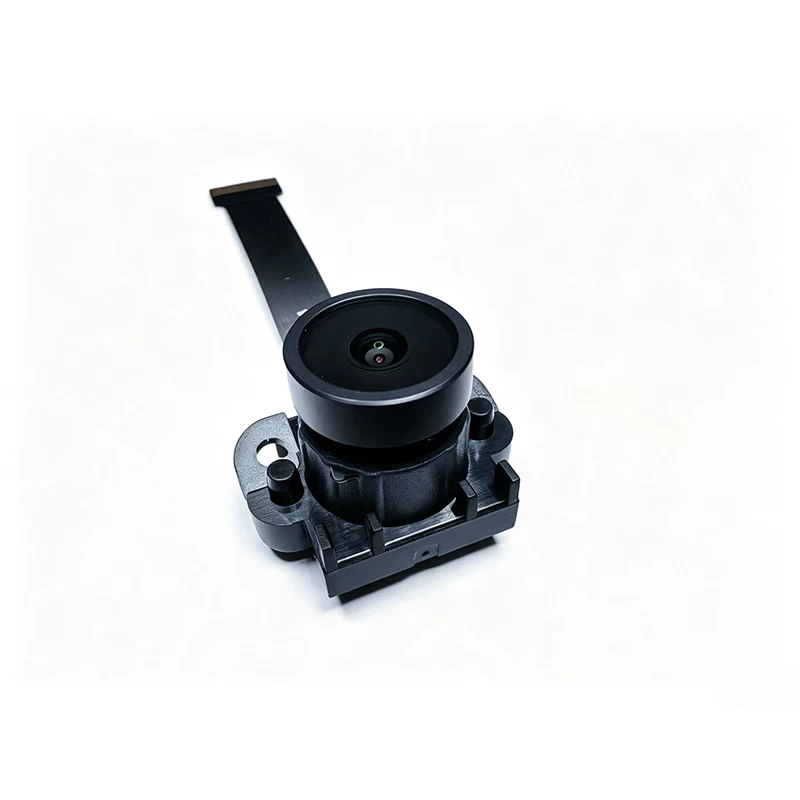

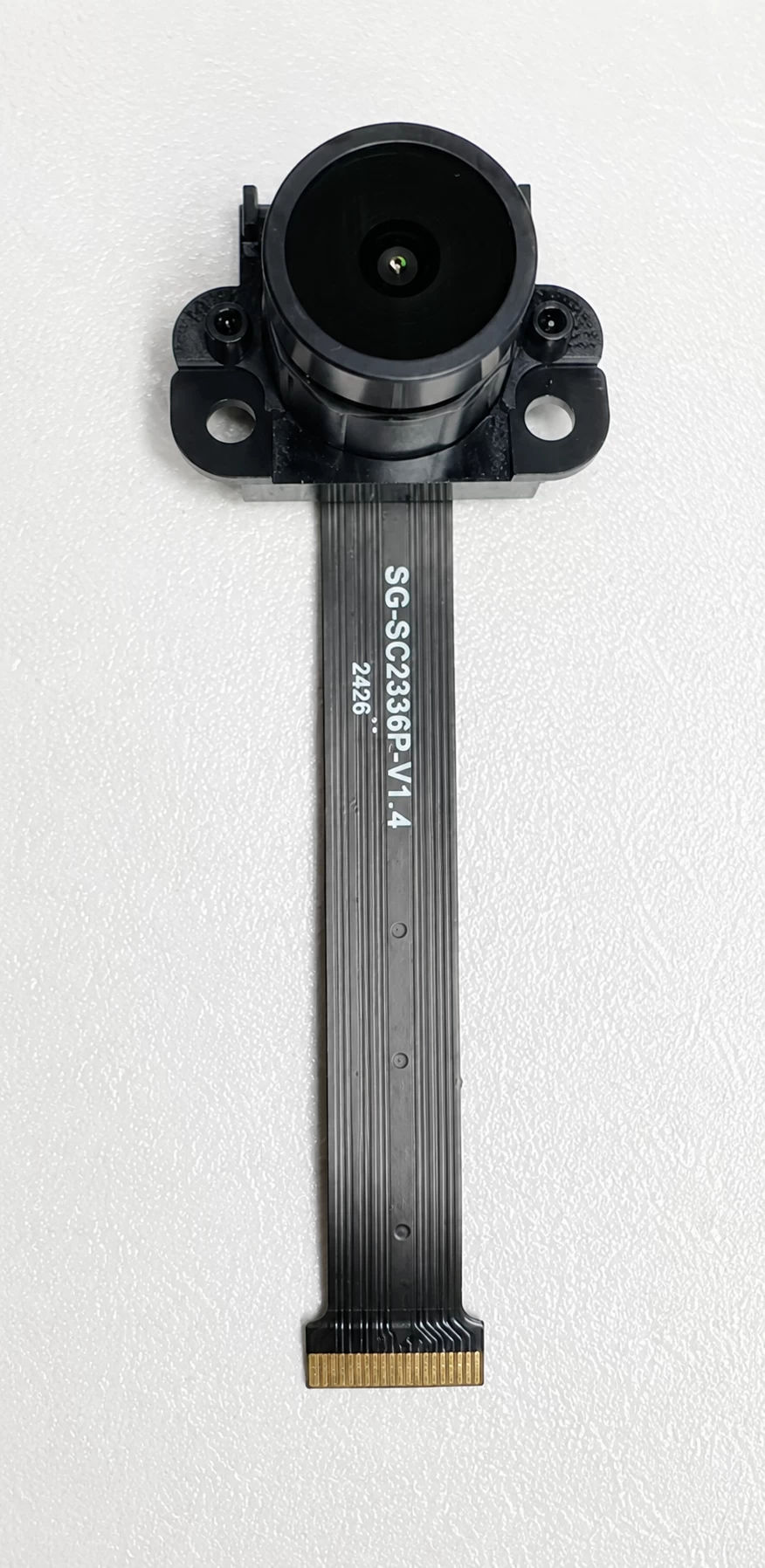

Ultra Wide-Angle (FPC) Lens Module
Brief Introduction:
Ultra-wide FPC lens module designed for the 1/3" SC2337P image sensor, featuring a 2.37 mm M12 fisheye lens, 4-glass + IR filter (4G+IRF) optical structure, ultra-wide field of view, and reliable wide-temperature performance.
Advantages & Features:
- 170° diagonal and horizontal field of view for near-panoramic coverage with minimal blind spots.
- Optimized with 15.4° CRA for the SC2337P sensor, ensuring excellent imaging compatibility.
- 4-glass optical design with IR filter delivers balanced day and night image quality.
- Compact design with a 17.8 mm TTL, ideal for compact camera devices.
- Wide operating temperature range from -20°C to +70°C for automotive and outdoor applications.
- Standard M12 × P0.5 thread provides excellent compatibility and easy installation.
Applications:
- Automotive 360° Surround View Systems
- In-Cabin Monitoring Cameras
- Panoramic Fisheye Cameras
- Smart Home Panoramic Security
- Compact Outdoor Wide-Angle Surveillance Devices
Specifications
| Item | Specification |
|---|---|
| Sensor Size | 1/3" SC2337P |
| Focal Length (EFL) | 2.37 mm |
| F/No. (Infinite) | F2.4 |
| Total Track Length (TTL) | 17.8 mm |
| Back Focal Length (Optical BFL) | 4.30 mm |
| Flange Back Length (Mechanical BFL) | 3.33 mm |
| Field of View (Diagonal) | 170° |
| Field of View (Horizontal) | 170° |
| Field of View (Vertical) | 76° |
| Optical Distortion | <-51.1% |
| Chief Ray Angle (CRA) | 15.4° |
| Thread Size | M12 × P0.5 |
| Lens Structure | 4 Glass + IR Filter (4G+IRF) |
| Operating Temperature | -20°C to +70°C |
Product description
Shipping & Return
Brief Introduction:
Ultra-wide FPC lens module designed for the 1/3" SC2337P image sensor, featuring a 2.37 mm M12 fisheye lens, 4-glass + IR filter (4G+IRF) optical structure, ultra-wide field of view, and reliable wide-temperature performance.
Advantages & Features:
- 170° diagonal and horizontal field of view for near-panoramic coverage with minimal blind spots.
- Optimized with 15.4° CRA for the SC2337P sensor, ensuring excellent imaging compatibility.
- 4-glass optical design with IR filter delivers balanced day and night image quality.
- Compact design with a 17.8 mm TTL, ideal for compact camera devices.
- Wide operating temperature range from -20°C to +70°C for automotive and outdoor applications.
- Standard M12 × P0.5 thread provides excellent compatibility and easy installation.
Applications:
- Automotive 360° Surround View Systems
- In-Cabin Monitoring Cameras
- Panoramic Fisheye Cameras
- Smart Home Panoramic Security
- Compact Outdoor Wide-Angle Surveillance Devices
Specifications
| Item | Specification |
|---|---|
| Sensor Size | 1/3" SC2337P |
| Focal Length (EFL) | 2.37 mm |
| F/No. (Infinite) | F2.4 |
| Total Track Length (TTL) | 17.8 mm |
| Back Focal Length (Optical BFL) | 4.30 mm |
| Flange Back Length (Mechanical BFL) | 3.33 mm |
| Field of View (Diagonal) | 170° |
| Field of View (Horizontal) | 170° |
| Field of View (Vertical) | 76° |
| Optical Distortion | <-51.1% |
| Chief Ray Angle (CRA) | 15.4° |
| Thread Size | M12 × P0.5 |
| Lens Structure | 4 Glass + IR Filter (4G+IRF) |
| Operating Temperature | -20°C to +70°C |
