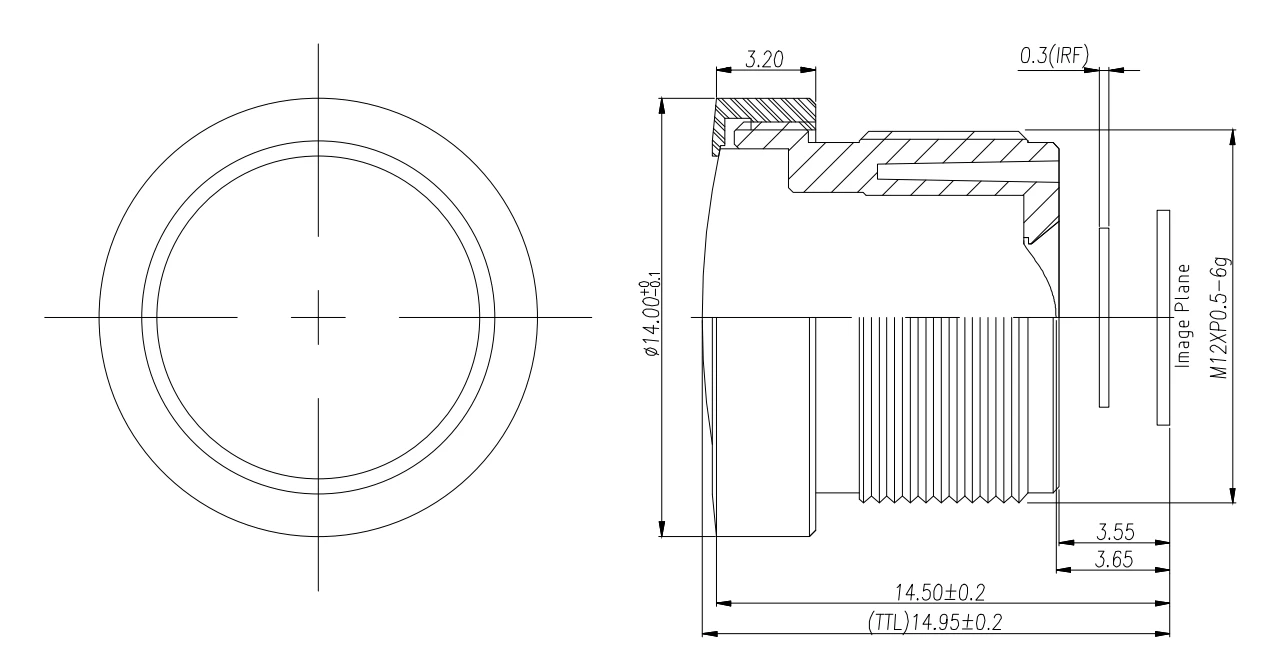

SW9112 Lens
Brief Introduction:
M12 ultra-wide fisheye lens featuring a 2.52 mm focal length, F2.4 large aperture, and a compact design.
Advantages & Features:
- Ultra-wide field of view enables a single lens to cover a large monitoring area.
- F2.4 large aperture delivers brighter images and improved low-light performance.
- Hybrid glass-plastic lens structure balances imaging quality with cost-effective mass production.
- Standard M12 mount ensures compatibility with most camera modules.
- Wide operating temperature range from -20°C to +80°C for reliable indoor and outdoor performance.
- Compact optical design with a short total track length, ideal for miniaturized device integration.
Applications:
- 360° Surround View Systems (Automotive)
- In-Cabin Monitoring Systems (IMS)
- Elevator & Retail Panoramic Security
- Smart Home Vision Systems
- Compact Panoramic Dash Cameras
Specifications
| Item | Specification |
|---|---|
| Sensor Size | 1/2.7" SC3235 |
| Focal Length (EFL) | 2.52 mm |
| F/No. (Infinite) | F2.4 |
| Total Track Length (TTL) | 14.95 mm |
| Back Focal Length (Optical BFL) | 3.65 mm |
| Flange Back Length (Mechanical BFL) | 3.55 mm |
| Field of View (Diagonal) | 166.9° |
| Field of View (Horizontal) | 137.4° |
| Field of View (Vertical) | 74.3° |
| TV Distortion (Diagonal) | <-33% |
| Chief Ray Angle (CRA) | <19° |
| Relative Illumination (RI) | >47% |
| Thread Size | M12 × P0.5 |
| Lens Structure | 2 Glass + 3 Plastic Elements (2G3P) |
| Operating Temperature | -20°C to +80°C |
