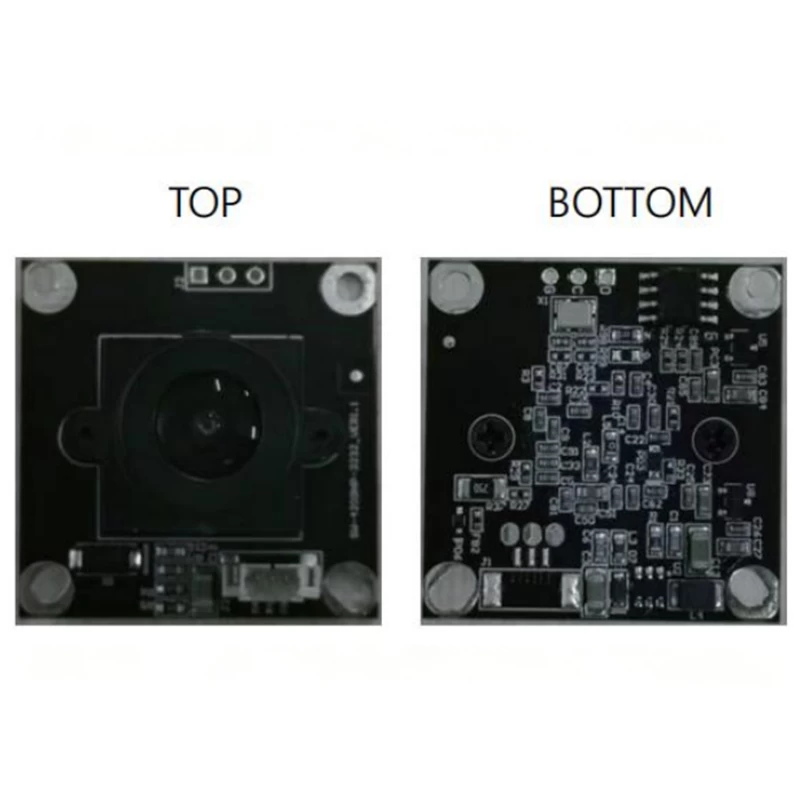

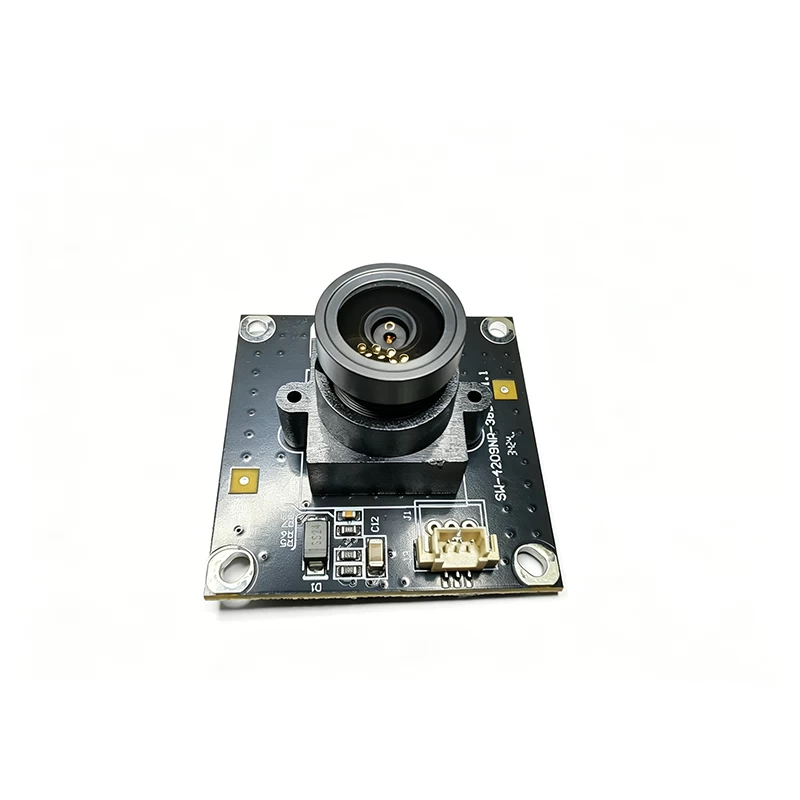

4209 38×38 / 32×32 Camera Module
Brief Introduction:
1080P AHD camera module featuring a 1/2.9" CMOS image sensor, 3.7 mm F2.3 4-glass lens, automatic exposure and white balance. Available in 38 × 38 mm and 32 × 32 mm PCB sizes, powered by DC12V with low power consumption and stable operation from -10°C to +50°C.
Advantages & Features:
- Single-chip 1/2.9" color CMOS sensor with 1080P AHD output at 25fps/30fps.
- High sensitivity for clear imaging in various lighting conditions.
- Built-in low-pass filter for improved image quality.
- Advanced color interpolation for accurate color reproduction.
- Defective pixel correction ensures stable, high-quality images.
- Compact PCB design for easy integration into space-limited devices.
Applications:
- Vehicle Cameras: Rear-view cameras for trucks and buses, in-vehicle monitoring.
- Security Surveillance: Retail stores, elevators, corridors, and indoor CCTV systems.
- Industrial Vision: Equipment inspection and production line image capture.
- Embedded Devices: Smart access control, self-service kiosks, parcel lockers, and integrated imaging systems.
Specifications
| Item | Specification |
|---|---|
| Image Sensor | 1/2.9" CMOS Image Sensor, 1920 × 1080, 25fps/30fps |
| TV System | NTSC 30fps / PAL 25fps |
| Effective Pixels | 1920(H) × 1080(V) |
| Video Output | 1Vp-p, 75Ω Composite |
| Exposure | Auto |
| S/N Ratio | 43.2 dB |
| Dynamic Range | 68.1 dB |
| White Balance | Auto |
| Sensitivity | 30.3K e/Lux·sec |
| Lens | 3.7 mm / F2.3, 4 Glass Lens |
| Operating Temperature | -10°C to +50°C |
| Power Supply | DC12V (±10%), <1.8W |
| PCB Dimensions | 38 × 38 mm / 32 × 32 mm |
| PCB Thickness | 1.0 mm |
