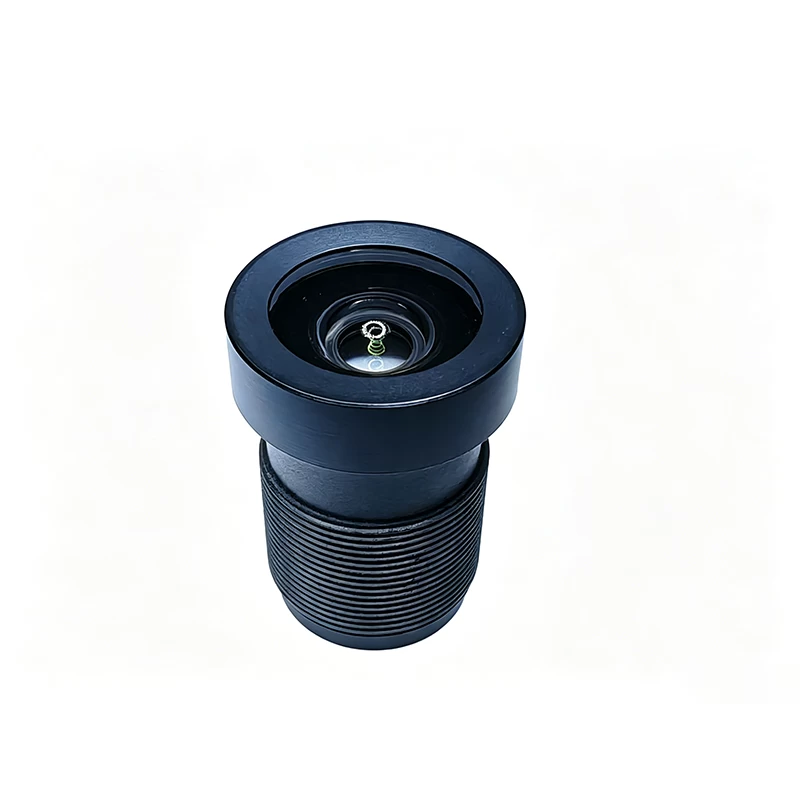

SW9206 Lens
Brief Introduction:
M12 standard wide-angle lens with a 3.9 mm focal length and F1.0 ultra-large aperture.
Advantages & Features:
- F1.0 ultra-large aperture captures exceptional light for outstanding low-light and night vision performance.
- 103.8° wide field of view provides an excellent balance between coverage and image distortion.
- Hybrid 1-glass + 6-plastic lens design reduces weight, controls production costs, and effectively minimizes chromatic aberration.
- Standard M12 × P0.5 thread ensures compatibility with most security and automotive camera modules.
- Wide operating temperature range provides stable performance in both indoor and outdoor environments.
Applications:
- Outdoor Security Surveillance
- Automotive Rear View Cameras
- Corridor & Retail Monitoring
- Low-Light Home Security Cameras
- Industrial Medium- to Long-Distance Vision Systems
Specifications
| Item | Specification |
|---|---|
| Sensor Size | 1/2.7" |
| Focal Length (EFL) | 3.9 mm |
| F/No. (Infinite) | F1.0 |
| Total Track Length (TTL) | 22.54 mm |
| Back Focal Length (Optical BFL) | 4.13 mm |
| Flange Back Length (Mechanical BFL) | 3.07 mm |
| Field of View (Diagonal) | 103.8° |
| Field of View (Horizontal) | 89.8° |
| Field of View (Vertical) | 48.6° |
| Optical Distortion | <-33.6% |
| Chief Ray Angle (CRA) | 14.7° |
| Minimum Object Distance (M.O.D.) | 0.8 m |
| Thread Size | M12 × P0.5 |
| Lens Structure | 1 Glass + 6 Plastic Elements (1G6P) |
| Operating Temperature | -20°C to +70°C |
