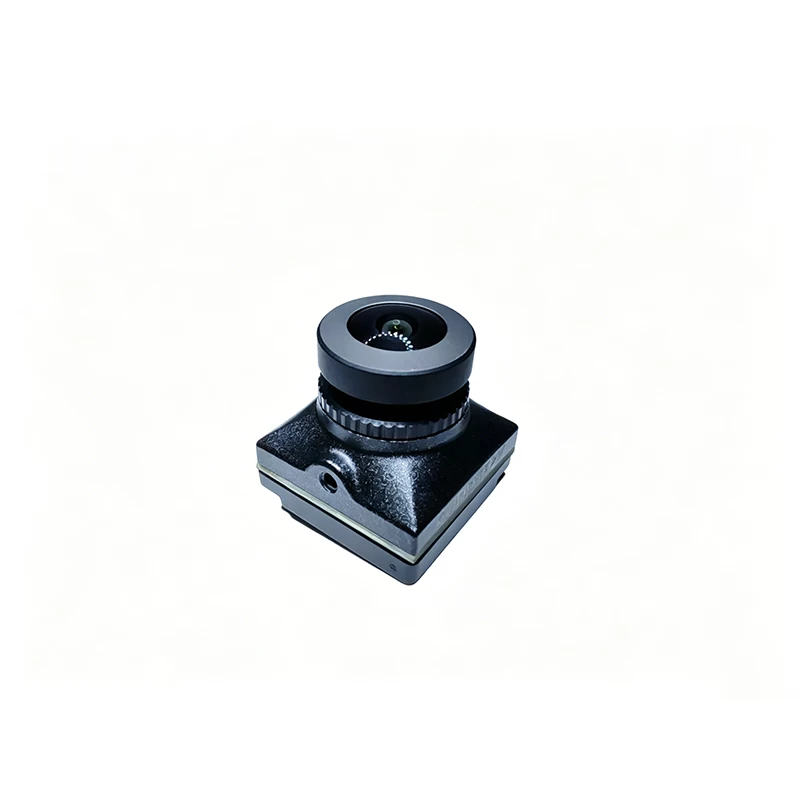

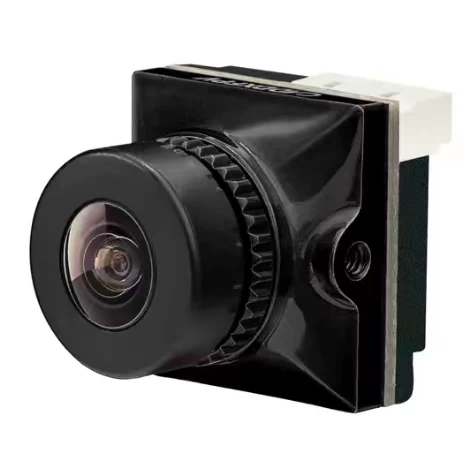

Drone Camera Module
Brief Introduction:
Mini CVBS analog camera module featuring a 1/2.8" starlight sensor, 1200TVL resolution, 165° ultra-wide-angle lens, compact 19 × 19 × 20 mm housing, lightweight 5.9 g design, 5–40V wide voltage input, and OSD parameter adjustment.
Advantages & Features:
- Starlight night vision with 0.0001 Lux minimum illumination, Super WDR and 3DNR for outstanding low-light performance.
- Switchable NTSC/PAL, 4:3/16:9 aspect ratio, multiple day/night modes, and multilingual OSD menu.
- Ultra-compact and lightweight design for drones, robots, and embedded applications.
- Wide operating temperature (-20°C to +60°C) and 5–40V input voltage for reliable industrial and automotive use.
- Complete accessories included for quick installation and easy configuration.
Applications:
- Drone FPV Video Transmission
- Automotive Surround View & Blind Spot Monitoring
- Industrial Machine Vision
- Robotics Vision Systems
- Hidden Security Surveillance
- Self-Service Outdoor Equipment
Specifications
| Item | Specification |
|---|---|
| Sensor | 1/2.8" Starlight Sensor |
| Horizontal Resolution | 1200 TVL |
| Horizontal Field of View | 165° |
| Lens | 2.1 mm |
| Video System | NTSC / PAL (Switchable) |
| Aspect Ratio | 4:3 / 16:9 (Switchable) |
| Wide Dynamic Range | Super WDR |
| Noise Reduction | 3DNR |
| Minimum Illumination | 0.0001 Lux |
| Video Output | CVBS Composite Analog |
| Day & Night Mode | External Trigger / Internal Trigger / B&W / Color |
| OSD Languages | Chinese, Traditional Chinese, English, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese |
| Electronic Shutter | PAL: 1/50–1/100000, NTSC: 1/60–1/100000 |
| Input Voltage | 5–40V DC |
| Operating Temperature | -20°C to +60°C |
| Weight | 5.9 g |
| Dimensions | 19 × 19 × 20 mm |
Product description
Shipping & Return
Brief Introduction:
Mini CVBS analog camera module featuring a 1/2.8" starlight sensor, 1200TVL resolution, 165° ultra-wide-angle lens, compact 19 × 19 × 20 mm housing, lightweight 5.9 g design, 5–40V wide voltage input, and OSD parameter adjustment.
Advantages & Features:
- Starlight night vision with 0.0001 Lux minimum illumination, Super WDR and 3DNR for outstanding low-light performance.
- Switchable NTSC/PAL, 4:3/16:9 aspect ratio, multiple day/night modes, and multilingual OSD menu.
- Ultra-compact and lightweight design for drones, robots, and embedded applications.
- Wide operating temperature (-20°C to +60°C) and 5–40V input voltage for reliable industrial and automotive use.
- Complete accessories included for quick installation and easy configuration.
Applications:
- Drone FPV Video Transmission
- Automotive Surround View & Blind Spot Monitoring
- Industrial Machine Vision
- Robotics Vision Systems
- Hidden Security Surveillance
- Self-Service Outdoor Equipment
Specifications
| Item | Specification |
|---|---|
| Sensor | 1/2.8" Starlight Sensor |
| Horizontal Resolution | 1200 TVL |
| Horizontal Field of View | 165° |
| Lens | 2.1 mm |
| Video System | NTSC / PAL (Switchable) |
| Aspect Ratio | 4:3 / 16:9 (Switchable) |
| Wide Dynamic Range | Super WDR |
| Noise Reduction | 3DNR |
| Minimum Illumination | 0.0001 Lux |
| Video Output | CVBS Composite Analog |
| Day & Night Mode | External Trigger / Internal Trigger / B&W / Color |
| OSD Languages | Chinese, Traditional Chinese, English, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese |
| Electronic Shutter | PAL: 1/50–1/100000, NTSC: 1/60–1/100000 |
| Input Voltage | 5–40V DC |
| Operating Temperature | -20°C to +60°C |
| Weight | 5.9 g |
| Dimensions | 19 × 19 × 20 mm |
